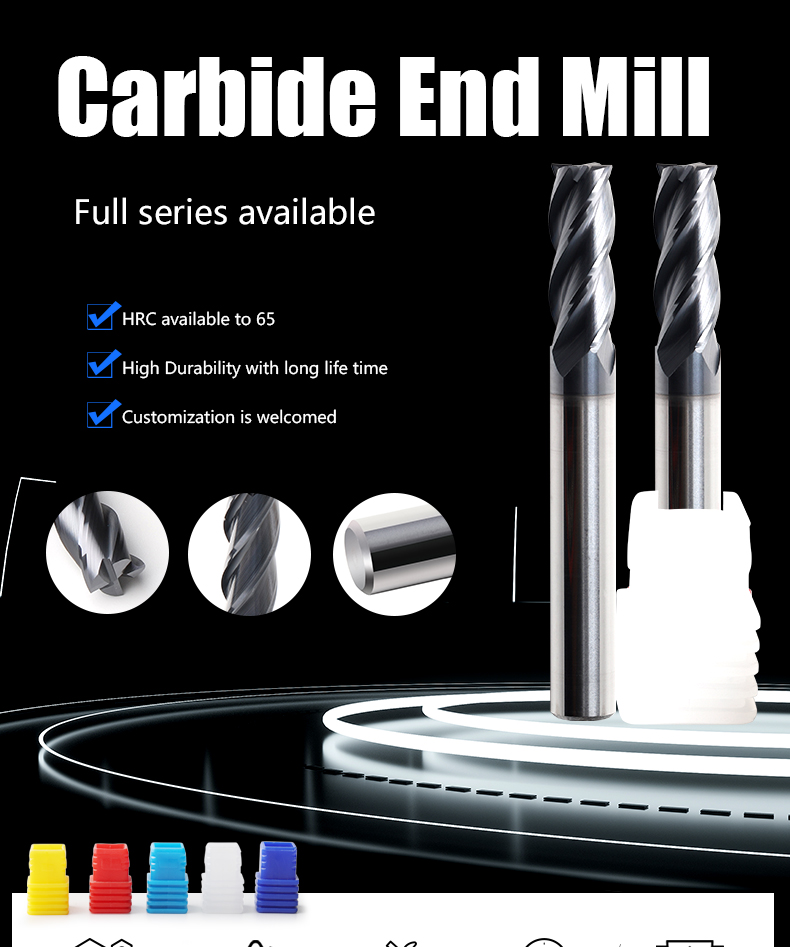

Hot Selling Black Coated 4 Flutes HRC58 Solid Carbide End Mills for Steel and Stainless Steel Cutting
Carbide end mills are mostly widely used on CNC lath milling of side face, step shoulder, straight slot in different industries.. They can be generally machined on steel, stainless steel, aluminum, copper etc. with varies types like the following picture.
Our advantage:
Competitive price
Timely delivery of consignments
Proper packaging
Transparency in all dealings
Excellent after sales customer support
Professional terms of business.
The specifications of end mills
| Specification | Cutting diameter (mm) | Shank diameter (mm) | Flute length (mm) | Overall length (mm) | Flute |
| D1*D4*50*4T | 1 | 4 | 3 | 50 | 4 |
| D1*D4*75*4T | 1 | 4 | 4.5 | 75 | 4 |
| D1*D4*100*4T | 1 | 4 | 5.5 | 100 | 4 |
| D1.5*D4*50*4T | 1.5 | 4 | 4 | 50 | 4 |
| D1.5*D4*75*4T | 1.5 | 4 | 5 | 75 | 4 |
| D1.5*D4*100*4T | 1.5 | 4 | 5.5 | 100 | 4 |
| D2.0*D4*50*4T | 2 | 4 | 6 | 50 | 4 |
| D2.0*D4*75*4T | 2 | 4 | 6 | 75 | 4 |
| D2.0*D4*100*4T | 2 | 4 | 8.5 | 100 | 4 |
| D2.5*D4*50*4T | 2.5 | 4 | 8 | 50 | 4 |
| D3.0*D4*50*4T | 3 | 4 | 7.5 | 50 | 4 |
| D3.0*D4*75*4T | 3 | 4 | 8 | 75 | 4 |
| D3.0*D4*100*4T | 3 | 4 | 10 | 100 | 4 |
| D3.5*D4*50*4T | 3.5 | 4 | 9 | 50 | 4 |
| D3.5*D4*75*4T | 3.5 | 4 | 9 | 75 | 4 |
| D3.5*D4*100*4T | 3.5 | 4 | 12 | 100 | 4 |
| D4.0*D4*50*4T | 4 | 4 | 11 | 50 | 4 |
| D4.0*D4*75*4T | 4 | 4 | 16 | 75 | 4 |
| D5.0*D6*50*4T | 5 | 6 | 13 | 50 | 4 |
| D5.0*D6*75*4T | 5 | 6 | 20 | 75 | 4 |
| D5.0*D6*100*4T | 5 | 6 | 25 | 100 | 4 |
| D6.0*D6*50*4T | 6 | 6 | 16 | 50 | 4 |
| D6.0*D6*75*4T | 6 | 6 | 25 | 75 | 4 |
| D6.0*D6*100*4T | 6 | 6 | 30 | 100 | 4 |
| D6.0*D6*150*4T | 6 | 6 | 30 | 150 | 4 |
| D7.0*D8*60*4T | 7 | 8 | 20 | 60 | 4 |
| D8.0*D8*60*4T | 8 | 8 | 20 | 60 | 4 |
| D8.0*D8*75*4T | 8 | 8 | 25 | 75 | 4 |
| D8.0*D8*100*4T | 8 | 8 | 35 | 100 | 4 |
| D8.0*D8*150*4T | 8 | 8 | 40 | 150 | 4 |
| D10.0*D10*75*4T | 10 | 10 | 25 | 75 | 4 |
| D10.0*D10*100*4T | 10 | 10 | 40 | 100 | 4 |
| D10.0*D10*150*4T | 10 | 10 | 50 | 150 | 4 |
| D12.0*D12*75*4T | 12 | 12 | 30 | 75 | 4 |
| D12.0*D12*100*4T | 12 | 12 | 45 | 100 | 4 |
| D12.0*D12*150*4T | 12 | 12 | 55 | 150 | 4 |
| D14.0*D14*100*4T | 14 | 14 | 40 | 100 | 4 |
| D14.0*D14*150*4T | 14 | 14 | 60 | 150 | 4 |
| D16.0*D16*100*4T | 16 | 16 | 45 | 100 | 4 |
| D16.0*D16*150*4T | 16 | 16 | 65 | 150 | 4 |
| D18.0*D18*100*4T | 18 | 18 | 45 | 100 | 4 |
| D18.0*D18*150*4T | 18 | 18 | 70 | 150 | 4 |
| D20.0*D20*100*4T | 20 | 20 | 45 | 100 | 4 |
| D20.0*D20*150*4T | 20 | 20 | 70 | 150 | 4 |
|
|
