Cemented carbide turning tools carbide tips hard metal carbide lathe cutter tools CNC parting

off inserts MGMN200-G

General information:

A tungsten carbide parting insert is mainly performed in bar feed machines, often used in mass production with proicess parting off,

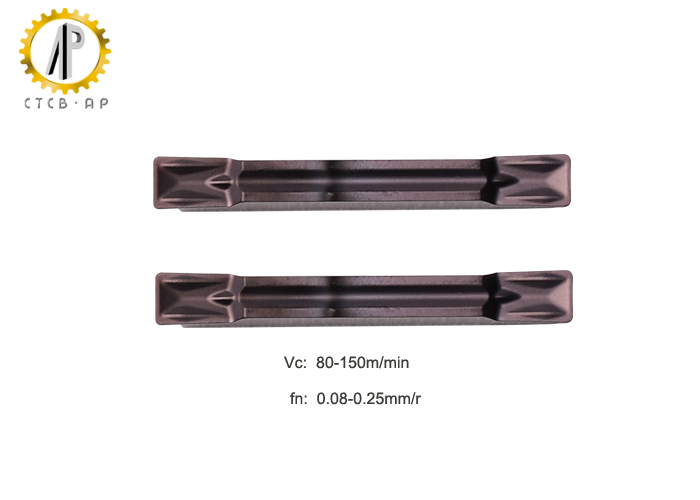

pls refer to the pictures:

The high toughness substrate with TiAlSIN coating of ultrafine grain size ,are universal and suitable for the processing of stainless steel and high temperature alloy.

Models introduction:

Contrast Advantage/Benefits of choosing tungsten carbide inserts:

1. Tungsten carbide insert has new Cutting edge technology with better quality and longer tool life.

• Excellent surface finish on the workpiece
• Improved adhesion and insert chipping resistance
• Stable and extended tool life in continuous and interrupted cutting operations

2. Advanced production machine ensure stable excellent quality

• Spay dry tower ensure well grain size
• Cutting edge well honed
• Parallel surface grinding ensure a insert’s presicion

How to choose parting inserts?

First choice for parting off

One- and two-edge solutions should be considered as the first choice for different parting off operations. Use inserts which are designed to produce chips narrower than the groove.

Shallow parting

For shallow parting (diameters ≤ 12 mm (0.47 inches)), use 3-edge inserts for economic parting in mass production.

Medium parting

For medium parting (diameters ≤ 40 mm (1.57 inches)) use screw-clamp and spring-lock holders with 2-edge inserts.

Deep parting

For deep parting (diameters ≤ 112 mm (4.41 inches)), insert stability is crucial as this type of cut places high forces on the insert. Hence, a blade with a stable spring clamp and a single edge insert is the best choice.

Pip and burr free parting

For pip and burr free parting, use a sharp geometry with small corner radii. A front angled insert will also reduce pip and burr. Front angled inserts will create side forces and are recommended only for short overhangs (<13 mm (0.51 inch)).

Small part machining

For small part machining, use an insert with the smallest width and sharpest cutting edges. For best process security, use a tool with precision coolant. If superior tool edge sharpness is not necessary, choose a 3-edge or 2-edge insert for a more economical solution, or for larger diameters.

Quality control:

Technical support and after-sale service:

Our company can providing the following technical service for customers:

1. Recommending more suitable processing parameters.

2. According to the workpiece design, material and CNC machine feed rate, cutting speed we can recommending a full set of practical scheme.

3. Suggsting more suitable model to replace the brands of Japan, Korea and so on.

4. We can offer together with tool holder.
