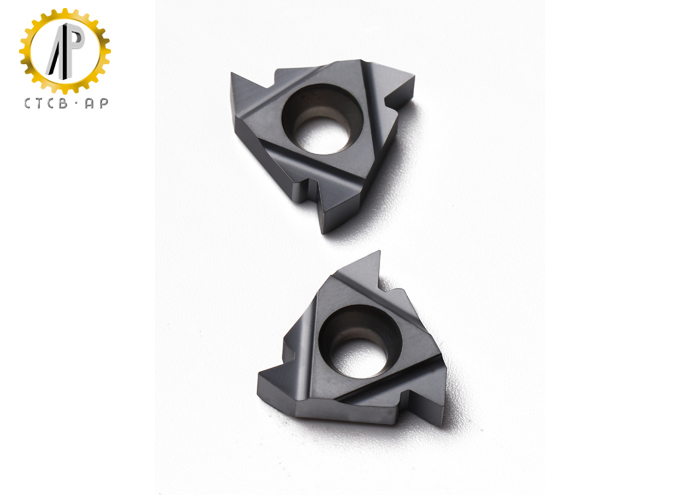

16ER Tungsten Carbide Inserts , Threading Inserts For Lathe
Machining Stainless Steel
Carbide threading inserts:
Carbide threading inserts are the most common material type, as
they allow for higher cutting speeds than tool steel and can retain
a sharper cutting edge. Available as external or internal threading
inserts, they usually fit into a right-hand toolholder that is
specifically designed to accept inserts.
It is usually used for all kinds of stainless steel and steel.
Items for External Threading inserts:
| Type | Dimensions(mm) | |||||
| ISO External Threading | ||||||
| Right hand inserts | Left hand inserts | Pitch | S | φI.C | φd | |
| 16ER-0.50ISO | 16EL-0.50ISO | 0.50 | 3.52 | 9.53 | 4.4 | |
| 16ER-0.75ISO | 16EL-0.75ISO | 0.75 | 3.52 | 9.53 | 4.4 | |
| 16ER-1.00ISO | 16EL-1.00ISO | 1.00 | 3.52 | 9.53 | 4.4 | |
| 16ER-1.25ISO | 16EL-1.25ISO | 1.25 | 3.52 | 9.53 | 4.4 | |
| 16ER-1.50ISO | 16EL-1.50ISO | 1.50 | 3.52 | 9.53 | 4.4 | |
| 16ER-1.75ISO | 16EL-1.75ISO | 1.75 | 3.52 | 9.53 | 4.4 | |
| 16ER-2.00ISO | 16EL-2.00ISO | 2.00 | 3.52 | 9.53 | 4.4 | |
| 16ER-2.50ISO | 16EL-2.50ISO | 2.50 | 3.52 | 9.53 | 4.4 | |
| 16ER-3.00ISO | 16EL-3.00ISO | 3.00 | 3.52 | 9.53 | 4.4 | |
| 22ER-3.50ISO | 22EL-3.50ISO | 3.50 | 5.56 | 12.7 | 5.5 | |
| 22ER-4.00ISO | 22EL-4.00ISO | 4.00 | 5.56 | 12.7 | 5.5 | |
| 22ER-4.50ISO | 22EL-4.50ISO | 4.50 | 5.56 | 12.7 | 5.5 | |
| 22ER-5.00ISO | 22EL-5.00ISO | 5.00 | 5.56 | 12.7 | 5.5 | |
| 22ER-5.50ISO | 22EL-5.50ISO | 5.50 | 5.56 | 12.7 | 5.5 | |
| 22ER-6.00ISO | 22EL-6.00ISO | 6.00 | 5.56 | 12.7 | 5.5 | |
| Wyeth External Threading | ||||||
| 16ER-8W | 16EL-8W | 8 | 3.52 | 9.525 | 4.4 | |
| 16ER-9W | 16EL-9W | 9 | 3.52 | 9.525 | 4.4 | |
| 16ER-10W | 16EL-10W | 10 | 3.52 | 9.525 | 4.4 | |
| 16ER-11W | 16EL-11W | 11 | 3.52 | 9.525 | 4.4 | |
| 16ER-12W | 16EL-12W | 12 | 3.52 | 9.525 | 4.4 | |
| 16ER-14W | 16EL-14W | 14 | 3.52 | 9.525 | 4.4 | |
| 16ER-16W | 16EL-16W | 16 | 3.52 | 9.525 | 4.4 | |
| UN External Threading | ||||||
| 16ER-8UN | 16EL-8UN | 8 | 3.52 | 9.525 | 4.4 | |
| 16ER-10UN | 16EL-10UN | 10 | 3.52 | 9.525 | 4.4 | |
| 16ER-12UN | 16EL-12UN | 12 | 3.52 | 9.525 | 4.4 | |
| 16ER-14UN | 16EL-14UN | 14 | 3.52 | 9.525 | 4.4 | |
| 16ER-16UN | 16EL-16UN | 16 | 3.52 | 9.525 | 4.4 | |
| 16ER-18UN | 16EL-18UN | 18 | 3.52 | 9.525 | 4.4 | |
| 16ER-20UN | 16EL-20UN | 20 | 3.52 | 9.525 | 4.4 | |
| Partial Propfile 55° 60° External Threading Inserts | ||||||
| Right hand inserts | Left hand inserts | Pitch(inch) | S | φI.C | φd | a° |
| 16ER-A60 | 16EL-A60 | 0.5-1.5(48-16) | 3.52 | 9.525 | 4.4 | 60 |
| 16ER-G60 | 16EL-G60 | 1.75-3.0(14-8) | 3.52 | 9.525 | 4.4 | 60 |
| 16ER-G60P* | 16EL-G60P* | 1.75-3.0(14-8) | 3.52 | 9.525 | 4.4 | 60 |
| 16ER-AG60 | 16EL-AG60 | 0.5-3.0(48-8) | 3.52 | 9.525 | 4.4 | 60 |
| 16ER-N60P* | 16EL-N60P* | 3.5-5.0(7-5) | 5.56 | 12.7 | 5.5 | 60 |
| 16ER-A55 | 16EL-A55 | 0.5-1.5(48-16) | 3.52 | 9.525 | 4.4 | 55 |
| 16ER-G55 | 16EL-G55 | 1.75-3.0(14-8) | 3.52 | 9.525 | 4.4 | 55 |
| 16ER-G55P* | 16EL-G55P* | 1.75-3.0(14-8) | 3.52 | 9.525 | 4.4 | 55 |
| 16ER-AG55 | 16EL-AG55 | 0.5-3.0(48-8) | 3.52 | 9.525 | 4.4 | 55 |
| 16ER-N55P* | 16EL-N55P* | 3.5-5.0(7-5) | 5.56 | 12.7 | 5.5 | 55 |
Grades recommendation:
| YP730 | For finishing and semi finishing of stainless steel and high temperature alloy. | PVD coating |
| YP731 | It's universal and suitable for the processing of stainless steel and high temperature alloy. | PVD coating |
Strict quality control:
Technical support and after-sale service:
Our company can providing the following technical service for
customers:
1: According to the workpiece design, material and CNC machine feed
rate, cutting speed we can recommending a full set of practical
scheme.
2: Recommending more suitable processing parameters.
3: Suggsting more suitable model to replace the brands of Japan,
Korea and so on.
4: We can offer together with tool holder.
5: Small orders are acceptable for quick delivery and to help you
reduce stock cost.
6: Custom fabrication according to your drawings, samples or
designs.

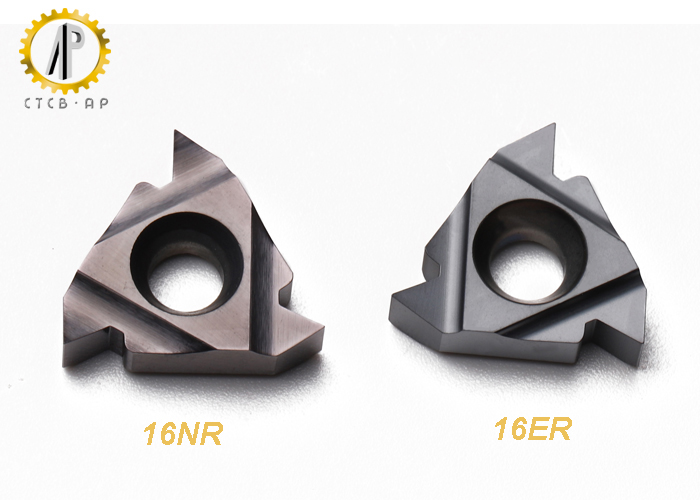

Tool Holders for threading Inserts:
| SER/L1212F11 | SER/L2525M22 | SNR/L0010K11 | SNR/L0020Q22 |
| SER/L1212F16 | SER/L3232P22 | SNR/L0012K11 | SNR/L0025R22 |
| SER/L1616H16 | SER/L4040R22 | SNR/L0016Q16 | SNR/L0032S22 |
| SER/L2020K16 | SER/L3232P27 | SNR/L0020Q16 | SNR/L0040T22 |
| SER/L2525M16 | SER/L4040R27 | SNR/L0025R16 | SNR/L0032S27 |
| SER/L3232M16 | SNR/L0032S16 | SNR/L0040T27 | |
| SNR/L0040T16 | SNR/L0050U27 |
|
|
