Zhuzhou Apple Carbide Tools Co.,LTD.
8 Years
| Ask Lasest Price | |
| Brand Name : | CTCP-AP |
| Model Number : | CNMG190612/16/24 |
| Certification : | ISO9001 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability : | 300000 pieces per month |
| Delivery Time : | Stock items can be sent within 3-5 days |

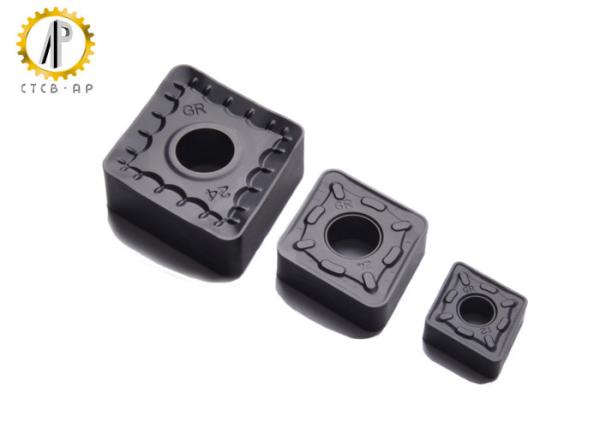

Steel Roughing Maching Tungsten Carbide Inserts , Carbide Insert Cutting Tools
Why choose tungsten carbide inserts?
Due to equal amounts of tungsten and carbon atoms embedded in a soft matrix of metallic cobalt, tungsten carbide is one of the hardest metals and is thus used to manufacture steels. The hardness value of tungsten carbide is 1600 HV, which is ten times higher than steel.
More and more people chooose tungsten carbide inserts to machine all kinds of hard metal.
Excellent chip control for steel machining, with higher durability.
Models introduction:
| CNMG For steel machining | GF | GM | PM | GR |
| CNMG120404-GF | CNMG120404-GM | CNMG120404-PM | CNMG120408-GR | |
| CNMG120408-GM | CNMG120408-PM | CNMG120412-GR | ||
| CNMG120412-GM | CNMG120412-PM | CNMG160612-GR | ||
| CNMG160608-GM | CNMG160616-GR | |||
| CNMG160612-GM | CNMG190612-GR | |||
| CNMG160616-GM | CNMG190616-GR | |||
| CNMG190608-GM | CNMG190624-GR | |||
| CNMG190612-GM | ||||
| CNMG190616-GM |
Different chipbreakers:
Grades recommendation:
YC330 | For finish machining of steel at high speed | CVD coating |
YC331 | The most versatility grade of steel processing | CVD coating |
YC332 | For rough machining of steel parts | CVD coating |
Features of our carbide inserts?
1. Effective chip control & perfect turning surface
Provides perfect turning surface of the workpiece. Excellent and reasonable Chipbreaker design, removing the chips smoothly and taking away the heat of the rubs of the workpiece.
2. Higher production, long tool life
Long tool life means you need less time changing the inserts while machining. A reliable and safe performance every time.
3. Less tool breakage, cost down of each component
Saving costs and reducing the cost of each component to increase the profits. The high wear resistance makes the long service life of the carbide inserts, which means you could saving more budget on purchasing the inserts.
4. CVD coating ensures the high wear resistance
The layer of the CVD coating with the thickness around 8um-20um
which guaranteed the high wear resistance.
Customer’s case: Cause and Solution when an insert is failed on performance
1.Flank wear
Cause:
-Cutting speed too high
-Too tough grade
-Insufficient wear resistance
-Hard inclusions in workpiece material
Soulution
-Reduce cutting speed
-Select a more suitable grade depending on toughness demand or wear resistance
2.Crater wear
Cause:
-Too high cutting speed and/or feed
-Chip breaker too narrow
-Chemical dissolution or abrasive wear
-Wear resistance too low
Solution:
-Reduce cutting speed or feed
-Select a more wear resistant grade
-Select a more open/positive geometry
Quality control:
Technical support and after-sale service:
If you have any question about carbide inserts, we would do our best to provide the technical service:
|
