Zhuzhou Apple Carbide Tools Co.,LTD.
8 Years
| Ask Lasest Price | |
| Brand Name : | CTCP-AP |
| Model Number : | WNMG080404/WNMG080408/WNMG080412/WNMA080404/WNMA080408 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability : | 300000 pieces per month |
| Delivery Time : | Stock items can be sent within 3-5 days |

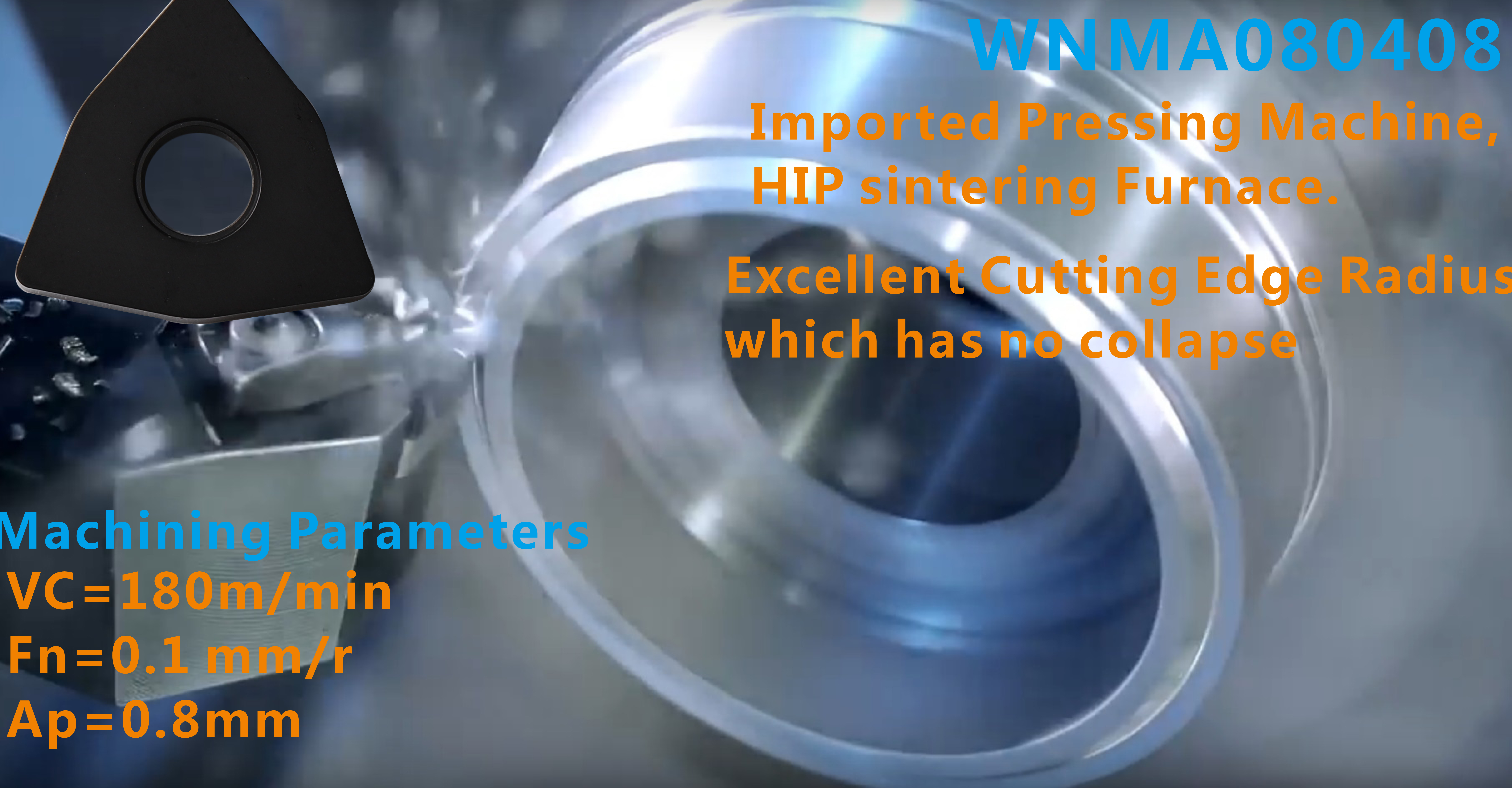

High Stability Cast Iron Machining Tungsten Carbide Inserts WNMG0804 WNMA0804 For CNC Lathe
What is carbide inserts?
Carbide inserts are used for cutting all kinds of metals.Because of its high hardness and strength,it is the most common material for cutting inserts now.People used to use brazed inserts tips,but due to low efficiency,brazed inserts have been mostly replaced by carbide coating inserts nowadays,which are indexable with coating,life time much longer and also with high accuracy and efficiency.
Excellent chipbreaker design makes good control when machining Steel,
which also Provides perfect surface finishing for the workpiece.
Models Introduction:
For Cast Iron machining | WNMG080404-GF | WNMG080408-GF | |
WNMG080404-GM | WNMG080408-GM | WNMG080412-GM | |
| WNMG080408-GR | WNMG080412-GR | ||
| WNMG080404 | WNMG080408 | WNMG080412 | |
| WNMA080404 | WNMA080408 | WNMA080412 |
Grades recommendation:
YC530 | For finish machining of cast iron at high speed | CVD coating |
YC531 | The most versatility grade of cast Iron processing | CVD coating |
YC532 | For rough machining of Cast Iron parts | CVD coating |
Advantage/Benefits of choosing our carbide inserts:
1.Imported Automatic Press Machine
Imported automatic press maching from Germany with a maximum pressure of 12 tons, each blade is weighed and controlled by the operator also at certain intervals to ensure high precision of the blade.
2.Professional chipbreaker design
It helps to remove heat and cut chips for improved processing stability.
3.CVD coating with enhanced resistance to chipping and abrasion
Thick (Al2O3) has excellent heat resistance and ensures longer tool life by reducing the amount of wear. The unique surface structure of the coating resists soldering and chipping of the insert during the cutting process.
Customer’s case: when a insert is failed on performance:
Flank Wear
-Workpiece material contains high hardness chemical elements (tool
steel, die steel)
Increase cutting speed if abnormal flank wear is caused by a very
slow cutting speed.
Solution: Reduce cutting speed or feed rate or use more wear
resistant grade
Crater Wear
-Workpiece material contains high hardness chemical elements
Solution: Reduce cutting speed or feed rate or use more wear
resistant grade
Quality control:
Be our Customer,then you could enjoy serive below:
A: More applicable machining parameters could be recommended.
B:Full sets of practical scheme could be provided profesionally based on your workpiece drawing,material and CNC machine feed rate, cutting speed.
C: More suitable models could be suggested to replace the brands of Japan, Korea and so on.
D. Tool Holders could be provided at one station service.
|
|
