| Brand Name : | CTCP-AP |
| Model Number : | SNMG120404/08/12 |
| Certification : | ISO9001:2008 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability : | 300000 pieces per month |
| Delivery Time : | Stock items can be sent within 3-5 days |
SNMG1204 Indexable Tungsten Carbide Turning Inserts CNC Machine Cutting Tools
About Us:
Searching for replacing Carbide Cutter Insert /CNC inserts ?
Apple carbide help you find the substitute Carbide Cutter Insert fit your needs !
We offer high-performance Carbide Cutter Insert with competitive price to suit different materials and machining operation.
SNMG120408-PM for steel machining :
Models introduction:

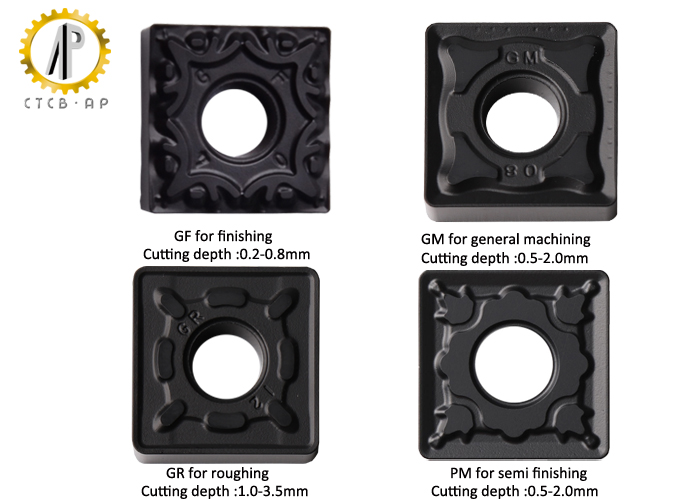

| For steel machining | SNMG120404-GF | SNMG120404(08 12)-GM | SNMG120404(08 12)-PM | SNMG120408(12)-GR |
| SNMG150608(12)-GM | SNMG150612-GR | |||
| SNMG190608(12 16)-GM | SNMG190612(16 24)-GM |
Grades recommendation:
YC330 | For finish machining of steel at high speed | CVD coating |
YC331 | The most versatility grade of steel processing | CVD coating |
YC332 | For rough machining of steel parts | CVD coating |
Why choose us ?
1. Good chip control
Excellent and reasonable Chipbreaker design, removing the chips smoothly and taking away the heat of the rubs of the workpiece.
2. CVD coating
The layer of the CVD coating with the thickness around 8um-20um
which guaranteed the high wear resistance.
3. Less tool breakage
The high wear resistance makes the long tool life of the carbide inserts, which means you could saving more budget on purchasing the inserts.
4. Long tool life
It means you need less time changing the inserts while machining
due to its reliable and safe performance.
Customer’s case: when a insert is failed on performance:
1. Flank Wear
-Workpiece material contains high hardness chemical elements (tool
steel, die steel)
Increase cutting speed if abnormal flank wear is caused by a very
slow cutting speed.
Solution: Reduce cutting speed or feed rate or use more wear
resistant grade
2. Crater Wear
-Workpiece material contains high hardness chemical elements
Solution: Reduce cutting speed or feed rate or use more wear
resistant grade
3. Cracking
-Excessive feed rates when interrupted cutting
Solution : Reduce feed rate, Use tougher grade
Quality control:
Technical support and after-sale service:
1.Suitable processing parameteres can be provided for our customer .
1:Suitable processing parameteres can be provided for our customer .
2:According to the workpiece design, material and CNC machine feed rate, cutting speed we can recommending a full set of practical scheme.
3:Suggsting more suitable model to replace the brands of Japan, Korea and so on.
4. We also supply matching tool holders which can help you saving time and cost of purchasing.
Thanks for your support to Apple carbide ,welcome to contact us for more details !
|
|
