Introduction for Solid CBN PCBN CNC inserts for machining cast iron metal lathe tools
Solid CBN inserts are typically recommended to machine ferrous materials such as hardened steel components over the range 45 to 70HRc and grey cast irons. The material combines high hot hardness, chemical stability and abrasion resistance to provide an effective solution for machining these very different work-piece materials.
Application for Solid CBN PCBN CNC inserts for machining cast iron metal lathe tools
1. High-speed cutting of ordinary gray cast iron such as engine blocks and cylinder heads
2. Roller, slurry pump, mining machinery and other alloy cast iron, alloy cast steel cutting
3. Hardened materials such as hardened steel, bearing steel, die steel, etc.
4. High-speed cutting of wear-resistant alloy cast iron such as brake discs and brake drums
5. Aero Engine Superalloy Cutting
Application of Solid CBN PCBN CNC inserts for machining cast iron metal lathe tools
| Work Piece Material | Hardness | V(m/min) | f (mm/rev) | Ap (mm) |
| Gray Cast Iron | HB170~300 | 500~1500 | 0.1~0.4 | 0.1~1.5 |
| Alloyed Iron | HB240~300 | 150~300 | 0.05~0.4 | 0.1~0.5 |
| Nodular Cast Iron | 100~350 | 200~400 | 0.1~0.4 | 0.1~0.5 |
| P/M Fe-based | HRC55-65 | 50~150 | 0.05~0.4 | 0.05~0.5 |
| Hardened Steel | HRC55~65 | 80~200 | 0.05~0.2 | 0.05~0.2 |
| Heat-resistant Alloys | 110~160 | 50~200 | 0.05~0.2 | 0.05~0.2 |

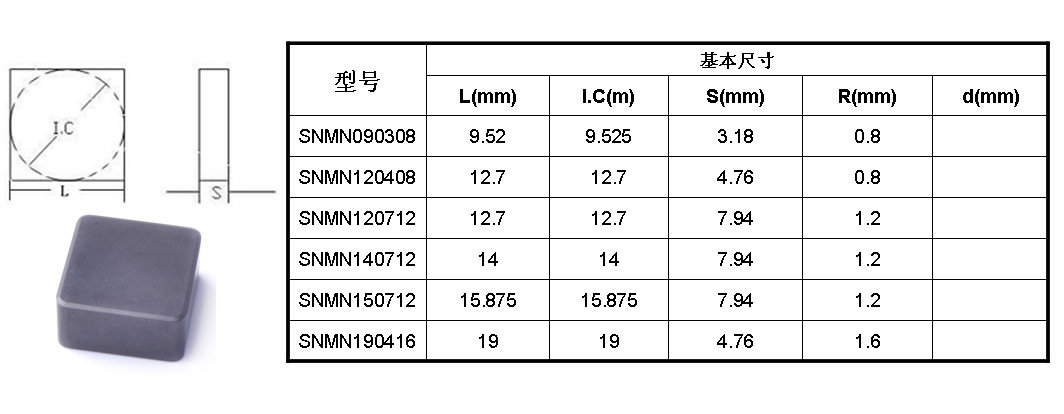

Catalgoues of Solid CBN PCBN CNC insert for machining cast iron metel lathe tools
|
|
