Zhuzhou Apple Carbide Tools Co.,LTD.
8 Years
| Ask Lasest Price | |
| Brand Name : | CTCP-AP |
| Model Number : | CNMA |
| Certification : | ISO 9001 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability : | 300000 pieces per month |
| Delivery Time : | Stock items can be sent within 3-5 days |
CNMA carbide lathe inserts for cast iron machining
1. Stable and strong cutting edge , not easy broken . High accurancy .
2. Auotomatic machine from abroad to ensure the top and stable quality .
3. Excellent wear resistance . Higher machining speed
4. Excellent production efficiency
5. Good chipbreaker for metal turning , removing chips smoothly .
6. Perfect turning surface of the workpiece .
Grade for carbide inserts:
| Grade | Coating | Performance for cast iron turning | Application | Equal grade of other brands |
| YC530 | Thick Ticn Thick Al2O3 | CVD coated grade,which is characterized by super fine grain and
smooth surface,is the combination of hard substrate and coating (extra thick AL203+thick TiCN).The grade is optimized for best wear resistance when machining gray cast iron at high speed under dry under dry condition. | Finishing Semifinishing | UC5115 CA4115 T5010 T5020 CA4010 NC305K,NC315K TK1000 Tk2000 KCK15 KC9315 IC9150 IC418 AC410K AC700G HG8010 GM8015 TT1300 TT1500 3210 3215 |
| YC531 | Thick Ticn Thick Al2O3 | CVD coated grade,which is the combination of hard substrate and coating(thick Al2O3+thick Ticn),shows excellent wear resistance and impact resistance when machining nodular cast iron at high speed. | Semifinishing Roughing | |
| YC532 | Thick Ticn Thick Al2O3 | CVD coated grade,which is the combination of hard substrate and coating(medium thick Al203+thick TiCN),has good flaking resistance.it is suitable for turning of cast iron at high speed,and light intermittent cutting can be supported even at moderate speed.It is also suitable for milling of cast iron. | Roughing |
Chipbreaker for carbide inserts:
Models of carbide inserts:
| Type | ||
| CNMG120404-GF | CNMG120408-GF | |
| CNMG120404-GM | CNMG120408-GM | CNMG120412-GM |
| CNMG120416-GM | CNMG160608-GM | CNMG160612-GM |
| CNMG190608-GM | CNMG190612-GM | CNMG190616-GM |
| CNMG120408-GR | CNMG120412-GR | CNMG120416-GR |
| CNMG160612-GR | CNMG160616-GR | CNMG190612-GR |
| CNMG190616-GR | CNMG190624-GR | CNMM190612-GR |
| CNMM190616-GR | CNMM190624-GR | CNMM250924-GR |
| CNMG120404-FF | CNMG120408-FF | |
| CNMG120404-FM | CNMG120408-FM | |
| CNMG120404 | CNMG120408 | CNMG120412 |
| CNMG120416 | CNMG160608 | CNMG160612 |
| CNMG160616 | CNMG190608 | CNMG190612 |
| CNMG190616 | ||
| CNMA120404 | CNMA120408 | CNMA120412 |
| CNMA120416 | CNMA160608 | CNMA160612 |
| CNMA160616 | CNMA160620 | CNMA190612 |
| CNMA190616 | ||
| CNGG120404-LC | CNGG120408-LC | CNGG120412-LC |

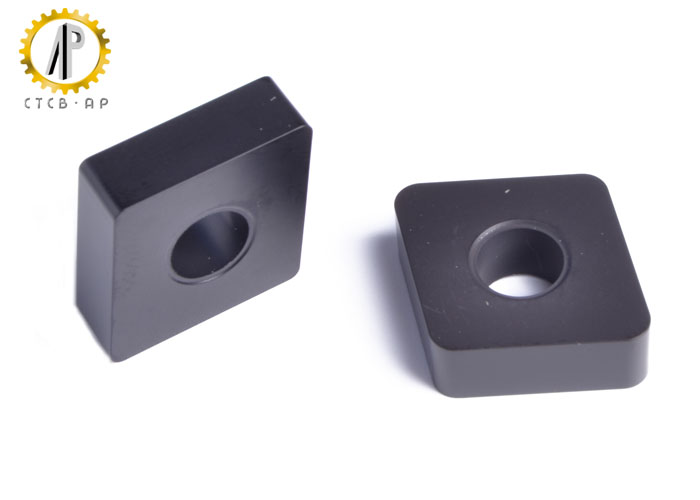

Photo:
|
|
