CCMT carbide lathe tools for internal turning
Features:
Advantage:
Workpiece: Turning , drilling and boring of steel, stainless steel, cast
iron, aluminum and non-ferrous metal etc.
Grade for carbide inserts:
| Grade | Coating | Performance for steel turning | Application | Equal grade of other brands |
| YC330 | Thick TiCN Thick Al2O3 | Thick Ticn and thick Al2O3 coatings improve the impact toughness
and abrasion resistance,which makes it suitable for finishing and semifinishing of steel at high speed. Cutting speed can increase by more than 25%,while the tool life can increase by more thank 30% at the same cutting speed. | Finishing Semifinishing | UE6050 UE6110 CA5525 T9005 T9015 AC810P AC2000 HG8010 GM8015 TT1300 TT3500 CA5505 NC310 NC3020 TP1000 TK1000 KC9110 KCP25 IC9150 IC9250 4215 4225 |
| YC331 | Thick TiCN Thick Al2O3 | Comprising of thick TiCN and thick Al2O3 coatings,the grade has
high capability against plastic deformation and good hardness of cutting edge.It is preferred grade for machining of steel from finishing to roughing.Under the same cutting conditions,the cutting speed can be increased by more than 25%,while the tool life can be 30% longer under the same cutting | Semifinishing Roughing | |
| YC332 | MT-TiCN Thick Al2O3 | The best combination of substrate with high wear resistance and coating composed of MT-Ti(CN),thick AL2O3 layer and TiN makes it suitable for roughing of steel materials | Roughing |
| Grade | Coating | Performance for cast iron turning | Application | Equal grade of other brands |
| YC530 | Thick Ticn Thick Al2O3 | CVD coated grade,which is characterized by super fine grain and
smooth surface,is the combination of hard substrate and coating (extra thick AL203+thick TiCN).The grade is optimized for best wear resistance when machining gray cast iron at high speed under dry under dry condition. | Finishing Semifinishing | UC5115 CA4115 T5010 T5020 CA4010 NC305K,NC315K TK1000 Tk2000 KCK15 KC9315 IC9150 IC418 AC410K AC700G HG8010 GM8015 TT1300 TT1500 3210 3215 |
| YC531 | Thick Ticn Thick Al2O3 | CVD coated grade,which is the combination of hard substrate and coating(thick Al2O3+thick Ticn),shows excellent wear resistance and impact resistance when machining nodular cast iron at high speed. | Semifinishing Roughing | |
| YC532 | Thick Ticn Thick Al2O3 | CVD coated grade,which is the combination of hard substrate and coating(medium thick Al203+thick TiCN),has good flaking resistance.it is suitable for turning of cast iron at high speed,and light intermittent cutting can be supported even at moderate speed.It is also suitable for milling of cast iron. | Roughing |
| Grade | Coating | Performance for turning stainless steel | Application | Equal grade of other brands |
| YP730 | TiALSiN | Advanced special coating technology with wear-resistant and
heatresistant rare element Si has high hardness and excellent heatresistance, improving the performance of the highhardness and high-speed processing.High surface smoothness | Finishing Semifinishing | VP15TF VP20MF GH730 AH120 AC520U AC530U TT8020 TT9030 PC9030 CP200 CP500 KC5025 KC730 IC250 IC3028 PR915 PR930 GC1020 GC4125 |
| YP731 | nc-TiALN | Superfine TiALN naco coating added with wear-resistant and
heatresistant rare elements has high hardness and excellent heatresistance, providing effective protection for the cutting edge.Special coating technology ensures stronger combination of coating and substrate.It is suitable for extra finishing of stainless steel. | Semifinishing Roughing | |
| YP732 | TIN+AL2O3 +TICN | The combination of nc-TiALN coating and tough cemented carbide substrate,which integrates security and wear resistance,makes it suitable for parting and grooving of various materials. | roughing |
| ISO code | |||
| P (steel) | YC330 | YC331 | YC332 |
| M (stainless steel) | YP730 | YP731 | YP732 |
K (cast iron) | YC530 | YC531 | YC532 |
| N (non ferrous metal) | YN101 |

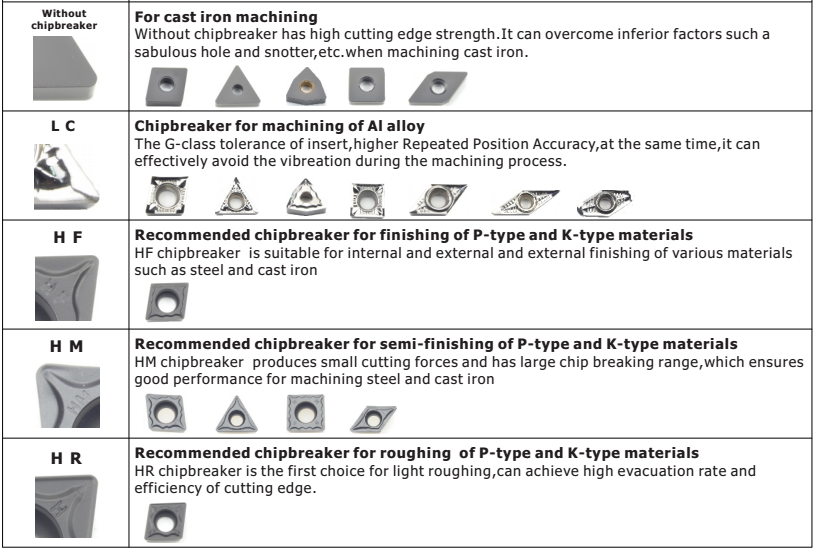

Chipbreaker for carbide inserts:
Models of carbide inserts:
| Type | ||
| CCMT060204-HF | CCMT09T302-HF | CCMT09T304-HF |
| CCMT060204-HM | CCMT060208-HM | CCMT09T304-HM |
| CCMT09T308-HM | CCMT120404-HM | CCMT120408-HM |
| CCMT09T308-HR | CCMT120408-HR | CCMT060204-FF |
| CCMT09T304-FF | CCMT120404-FF | CCMT060204-FM |
| CCMT060208-FM | CCMT09T304-FM | CCMT09T308-FM |
| CCMT120404-FM | CCMT120408-FM | CCGT060202-LC |
| CCGT060204-LC | CCGT060208-LC | CCGT09T302-LC |
| CCGT09T304-LC | CCGT09T308-LC | CCGT120404-LC |
| CCGT120408-LC |
Photo: HM chipbreaker, a very good performance for machining steel and
cast iron
|
|
