| Brand Name : | CTCB-AP |
| Model Number : | flattened |
| Certification : | ISO9001 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union,paypal |
| Supply Ability : | 500000 pieces per month |
| Delivery Time : | 5-35 work days |

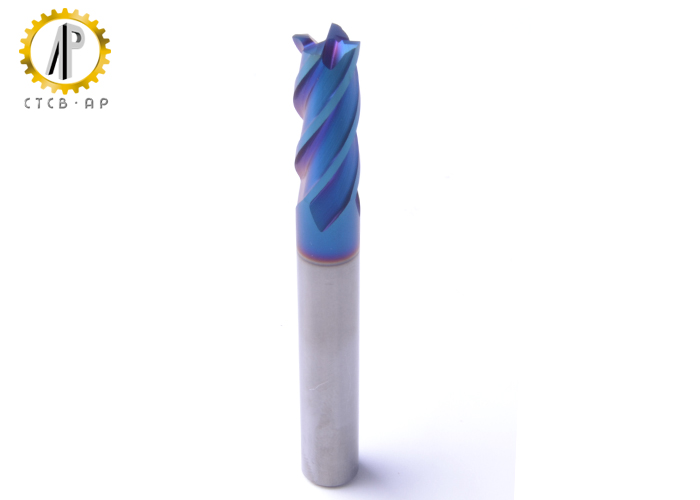

Carbide Flat End Mills with Blue Nano Coating for high performance Milling
Solid Carbide Flat End Mill is also known as " square end milling cutter or Flattened End Mills".
The corners of these mills are sharp and generate a 90° angle.
Flat End Mills can be general purpose or high perfomance geometries.
They can be used used for plunging, grooving, side milling, face milling, and counter boring.
These are the most popular milling cutters in the industry.
Flat End Mills are available in a wide variety of diameter sizes.
End Tooth Type of Solid Carbide End Mills
| 4-flute flattened end mills |
Machining Operation of Solid Carbide End Mills
Flatttend End Mills for Side Machining |
Flatttend End Mills for shoulder Machining |
Flatttend End Mills for straight slot Machining |
Flatttend End Mills for deep slot Machining |
Catalogue
Specifications | (mm) Basic size | flute | shape | |||
| D | d | H | L | |||
| MKS40100N-D4 | 3 | 4 | 1 | 50 | 4 | M1 |
| MKS40150N-D4 | 4 | 4 | 1.5 | 50 | 4 | M1 |
| MKS40200N-D4 | 6 | 4 | 2 | 50 | 4 | M1 |
| MKS40250N-D4 | 8 | 4 | 2.5 | 50 | 4 | M1 |
| MKS40300N-D4 | 8 | 4 | 3 | 50 | 4 | M1 |
| MKS40400N-D4 | 11 | 4 | 4 | 50 | 4 | M2 |
| MKS40100N | 3 | 6 | 1 | 50 | 4 | M1 |
| MKS40150N | 4 | 6 | 1.5 | 50 | 4 | M1 |
| MKS40200N | 6 | 6 | 2 | 50 | 4 | M1 |
| MKS40250N | 8 | 6 | 2.5 | 50 | 4 | M1 |
| MKS40300N | 8 | 6 | 3 | 50 | 4 | M1 |
| MKS40400N | 11 | 6 | 4 | 50 | 4 | M1 |
| MKS40500N | 13 | 6 | 5 | 50 | 4 | M1 |
| MKS40600N | 16 | 6 | 6 | 50 | 4 | M2 |
| MKS40700N | 20 | 8 | 7 | 60 | 4 | M1 |
| MKS40800N | 20 | 8 | 8 | 60 | 4 | M2 |
| MKS40900N | 22 | 10 | 9 | 75 | 4 | M1 |
| MKS41000N | 25 | 10 | 10 | 75 | 4 | M2 |
| MKS41100N | 26 | 12 | 11 | 75 | 4 | M1 |
| MKS41200N | 30 | 12 | 12 | 75 | 4 | M2 |
| MKS41400N | 32 | 14 | 14 | 75 | 4 | M2 |
| MKS41600N | 45 | 16 | 16 | 100 | 4 | M2 |
| MKS41800N | 45 | 18 | 18 | 100 | 4 | M2 |
| MKS42000N | 45 | 20 | 20 | 100 | 4 | M2 |
|
|
